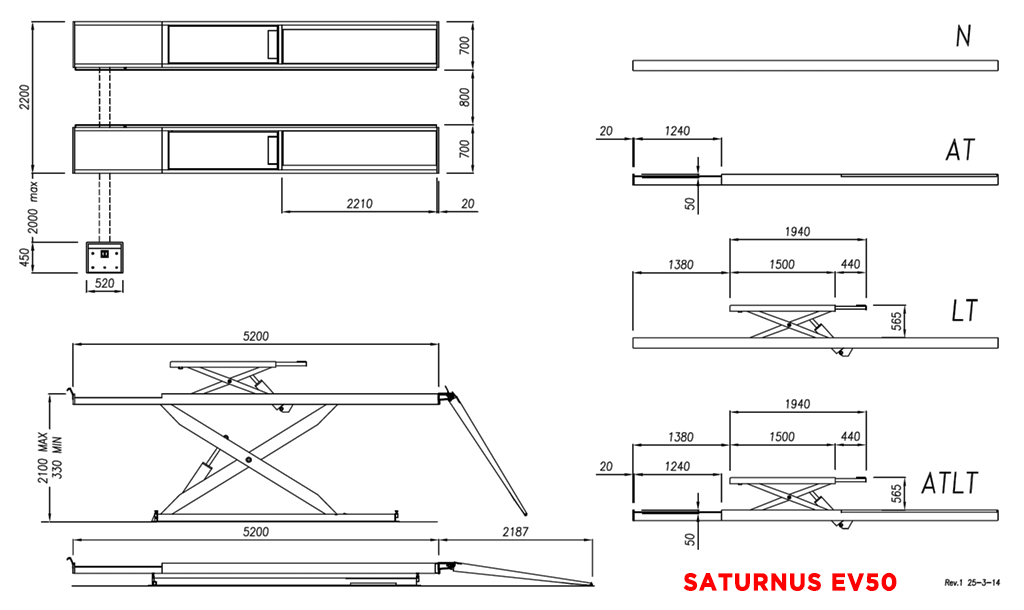

SATURNUS EV45 – EV50

Electro-hydraulic scissor lift

  • Hydraulic platforms’ synchronization
  • 2 independent hydraulic circuits
  • Overload safety valve
  • Safety valve in the event of sudden loss of pressure
  • Manual descent system in the event of power failures
  • “Dead man” controls 24V
  • Auxiliary lifting tables with double cylinders’ system
  • Set of 4 rubber pads (LT and ATLT)
  • Front recesses and rear slip plates for wheel alignment (AT and ATLT versions)
  • Lateral rails for jack ing beams
  • Acoustic warning in the last portion of descent
  • Mechanical locks between the cylinders for a perfect levelling of the platforms (AT and ATLT versions) – OPTION 1: recessed installation kit – OPTION 2: on floor installation kit

Technical Data

Capacity4.500 kg (EV45)
5.000 kg (EV50)
Lift table capacity (on LT and ATLT versions)4.000 kg
Weight1450 – 2250 kg (EV45)
1500 – 2300 kg (EV50)
Lifting/lowering40/30 s
Optional INVERTER 22/30 s
Lifting height2100 mm + (565 mm ATLT – LT)
Min. height330 mm
Motor4 kW – 3 ph
230-400V/50 Hz
Pneumatic feed6 – 8 bar
